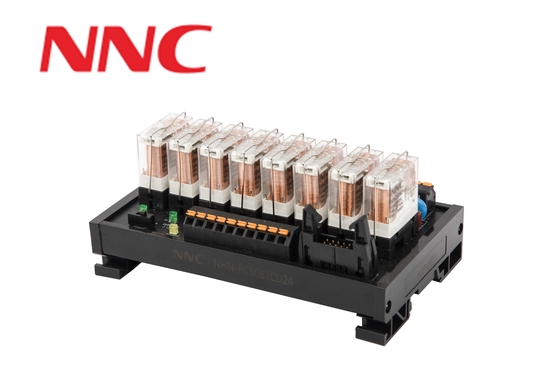

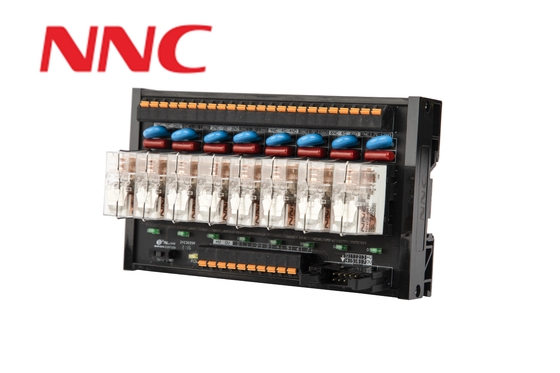

Clion NNC Power relay module NHN-RC1/2/5/6 NPN/PNP input with Industrial Control relay NNC69KP available for CNC systems
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Relay Module | Input | NPN/PNP |
|---|---|---|---|
| Rated Voltage | 12VDC/24VDC/220VAC | Rated Current | 1Z NO: 16A; 2Z: 10A |
| Max Switching Voltage | 250VAC/30VDC | ELectrical Life | 1*10^5 |
| Mechanical Life | 1*10^7 | Input Terminal | Lifting Terminal/Shrapnel Terminal |
| Output Terminal | MIL Connector |
Product Description
HNH-RC1/2/5/6 Series Relay Module
Specification
| INPUT COIL PARAMETERS | |
| Driving mode | NPN/PNP |
| Rated voltage | 12VDC/24VDC/220VAC |
| ingle power consumption | DC:0.53W AC:1.0VA |
| Action voltage | x70% Rated voltage |
| Release voltage | x10% Rated voltage |
| Action time | ≤10ms |
| Release tine | ≤15ms |
| OUTPUT CONTACT PARAMETERS | |
| Contact type |
1Z NO: 16A 250VAC/30VDC
2Z: 10A 250VAC/30VDC
|
| Electrical life | 1*10^5 |
| Mechanical life | 1*10^7 |
| Contact material | Silver Alloy |
| Contact resistance | ≤ 100mΩ(6VDC 1A) |
| Protection circuit | RC |
| CONNECTOR | |
| Strip length | 6mm |
| Torque | 0.4Nm/(3.54Lb-in) |
| Input terminal type | Lifting terminal/Shrapnel terminal |
| Output terminal type | MIL Connector |
| Input wire diameter | 0.2-2.5mm /26-14AWG |
| Output wire diameter | 0.2-2.5mm /26-14AWG |
| WORKING TEMPERATURE | -10~55°C |
| STORAGE TEMPERATURE | -40~70°C |
Diagram(mm)
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
