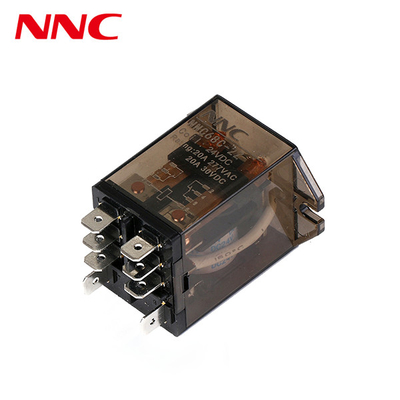

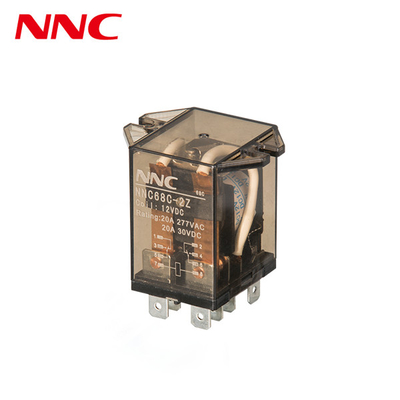

Clion NNC Electromagnetic relay HHC68C 2Z dc 12v Power relay with flange type
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Power Relay | Usage | General Purpose |
|---|---|---|---|
| Size | Miniature | Contact Load | High Power |
| Contact Material | Ag Alloy | Rated Current | 20A |
| Max Switching Voltage | 277VAC/30VDC |
Product Description
NNC68C Power Relay
Speciation
|
Part NO.
|
NNC68C
|
|||
|
Dimension
|
46*35*52.5mm
|
|||
|
Contact Feature
|
Form
|
2A,2B,2C
|
||
|
Rated load
|
20A/277VAC 30VDC
|
|||
|
Contact resistance
|
≤100mΩ
|
|||
|
Material
|
Silver Alloy
|
|||
|
Electrical life
|
≥1*105
|
|||
|
Mechanical life
|
≥1*107
|
|||
|
Operate voltage (25℃)
|
DC:≤75%*Rated voltage
|
|||
|
AC:≤80%*Rated voltage
|
||||
|
Release voltage (25℃)
|
DC:≥10%*Rated voltage
|
|||
|
AC:≥30%*Rated voltage
|
||||
|
Maximum voltage (25℃)
|
110%*Rated voltage
|
|||
|
Normal coil voltage
|
DC
|
6-220V
|
||
|
AC
|
6-380V
|
|||
|
Normal coil power
|
DC
|
1.8W
|
||
|
AC
|
2.7VA
|
|||
|
Pick-up time(Rated voltage)
|
≤25ms
|
|||
|
Release time(Rated voltage)
|
≤20ms
|
|||
|
Dielectric strength
|
Between Same-pole contacts
|
1000VAC/1min(leakage current 1mA)
|
||
|
Between Opposite-pole contacts
|
2500VAC/1min(leakage current 1mA)
|
|||
|
Between contacts and coil
|
2500VAC/1min(leakage current 1mA)
|
|||
|
Insulation resistance
|
≥100mΩ(500VDC)
|
|||
|
Ambient temperature
|
-25℃ ～55℃
|
|||
|
Ambient humidity
|
45%-75%RH
|
|||
|
Atmospheric pressure
|
86-106KPa
|
|||
|
Shock resistance
|
10G (sinusoidal half-wave pulse: 11ms)
|
|||
|
Vibration resistance
|
10-55Hz (double amplitude: 1.0mm)
|
|||
|
Installation
|
SOCKET
|
|||
|
Packing
|
Inner box
|
Paper box(pcs)
|
10
|
|
|
Outer box
|
Paper box(pcs)
|
200
|
||
|
Dimension of the carton
|
Paper box(pcs)
|
395*198*318MM
|
||
|
|
||||
|
Weight
|
1PC
|
Approximate 75g
|
||
|
1CTN
|
G.W:16KG N.W:15KG
|
|||
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
