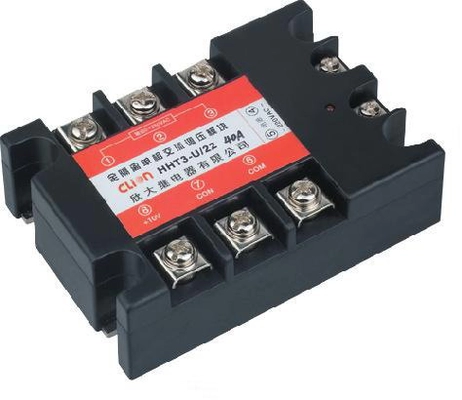

HHT3 Full-isolated single-phase voltage regulation module
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | solid state relay,single phase,CE certification |
||
|---|---|---|---|
Product Description
Part NO. | HHT3-U/22 10-100A | ||
SSR-VA | |||
Description | Full-isolated single-phase voltage regulation module | ||
Control mode | 0-5VDC 0-10VDC 4-20mA | ||
Load Voltage | 220VAC | ||
Voltage-regulation Scope | 10-250VAC | ||
Isolation Voltage | Active type | Full isolation | |
Off-state Leakage Current | ≤10mA | ||
Output Current | 10A,20A,30A,40A,100A | ||
Transient Voltage | 600VAC | ||
On-state Voltage Drop | ＜20VAC | ||
Dielectrics Voltage-resistance | ≥2500VAC | ||
Insulation Resistance | 500MΩ 500VDC testing | ||
Ambient temperature | -30～80℃ | ||
Dimensions | 106L*75W*31.5H | ||
Indicated Methods | LED | ||
Installation | Screw fixing | ||
Packing | Inner Box (PCS) | 1PCS/paper box | |
Outer CTN (PCS) | 30PCS | ||
CTN Size | 380*215*175mm | ||
Weight | 10A≤390g/PCS G.W:13kg N.W:12kg | ||
40A≤470g/PCS G.W:15.5kg N.W:14.5kg | |||
100A≤540g/PCS G.W:17.5kg N.W:16.7kg | |||
Radiator | HH060,HH061,HH062,HH063 | ||
Remarks | 1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary. | ||
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage | |||
